USB Flash Drive Data Recovery Services

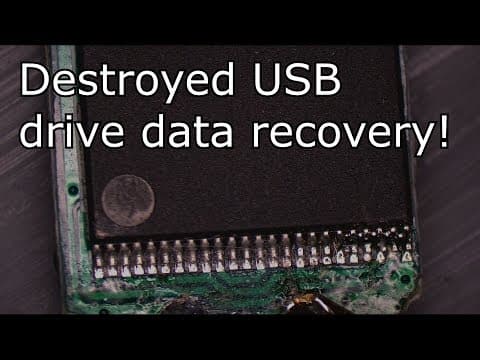

Broken USB connectors are one of the most common physical failures we see. The USB-A, USB-C, or Micro-USB plug gets bent, snapped, or ripped clean off the PCB. When the connector separates, it often tears the copper traces and solder pads that carry data and power signals between the connector and the controller chip.

We repair these under a stereo microscope at 20-45x magnification. Each torn trace is bridged with 0.1mm or thinner magnet wire, soldered directly to the exposed copper.

If the original pads are destroyed, we scrape back the solder mask to expose fresh copper further up the trace and solder the replacement connector there. The four critical lines (VCC, D+, D-, GND) must all make solid contact before the drive will enumerate on a USB bus.

Once the connector is repaired and the drive enumerates, we image it sector-by-sector before any file recovery. This avoids stressing the repaired connection with repeated access. Connector repairs fall under our PCB Repair tier ($600–$900) depending on the number of torn traces and how close the break is to the controller's BGA pads.

NAND flash wears out because every write first erases a cell, then reprograms it, and each erase cycle physically degrades the thin oxide that traps the charge holding your data. Cells rated for more program/erase cycles last longer. Fewer bits per cell means higher endurance, so SLC outlasts QLC.

How a Flash Cell Wears Out

Each program/erase cycle pushes electrons through the cell's tunnel oxide by Fowler-Nordheim tunneling, and that repeated stress gradually breaks the oxide down. A worn cell holds its stored charge less reliably. Stored charge also leaks away on its own, so a flash drive left unpowered for years can drift into retention errors as the cell voltages sag below the read reference.

Reads add their own wear. Repeatedly reading one page disturbs the threshold voltages of neighboring cells, an effect called read disturb. As raw bit errors climb, the controller's LDPC error-correction engine has to re-read the cells at finely shifted reference voltages, using soft-decision decoding to resolve which state each cell really holds. That extra work is why a worn TLC or QLC recovery reads slower than a healthy one.

Cell type is why two identical-looking drives fail on different schedules. Cheap high-capacity USB-C thumb drives increasingly ship QLC NAND, which packs four bits into sixteen voltage states per cell and wears fastest of the four types.

Running chkdsk or fsck on a failing flash drive can burn the endurance that is left and overwrite data you still want. Both tools work at the file-system layer over the standard block interface; they cannot reach the controller firmware or the Flash Translation Layer, so they treat a physically failing drive as if it were healthy.

To repair a corrupt file system, chkdsk and fsck issue writes: they rewrite directory entries, the FAT or MFT, and free-space maps. The flash controller translates every one of those logical writes into physical program/erase operations on the NAND. On a drive already failing from wear, those extra cycles spend the little endurance the cells have left.

The bigger risk is overwriting. A repair pass can reclaim and write over blocks the controller had marked free, and those blocks often still hold the unallocated data a lab would carve back during a chip-off reconstruction. Once the controller reuses them, that data is gone before recovery even starts.

If a flash drive is failing, stop writing to it. Do not let the operating system "repair" it, do not reformat, and do not run repeated scans. Image it first, then work from the image. This is the deeper reason behind the shorter warning against low-quality recovery software above: on flash, any write can cost you the recovery.

Some USB flash drive controllers expose JTAG (Joint Test Action Group) debug ports or boundary scan interfaces on the PCB. These test points were placed by the manufacturer for factory testing and firmware programming. When the primary USB interface is unresponsive due to firmware corruption or a locked controller state, JTAG provides a secondary path to the memory.

We connect a JTAG adapter to the debug pins and use boundary scan commands to read the controller's internal registers and, in some cases, access the NAND directly through the controller's memory bus. This is less invasive than a full chip-off because the NAND chips stay soldered to the board.

It works on a subset of controllers (primarily older Phison and SSS designs) where the JTAG interface was not disabled in production firmware. Embedded memory controllers used in eMMC devices also expose similar test points, and the technique carries over.
