Western Digital Data Recovery

How Much Does Western Digital Data Recovery Cost?

Western Digital recovery costs $100–$2,000. Simple copies cost $100, while file system recovery is From $250. PC-3000 firmware repairs for Module 32 overfill, translator corruption, or ROM failure cost $600–$900. Clean bench head swaps cost $1,200–$1,500, and platter damage starts at $2,000. Free evaluation; no data, no fee.

What Does a WD Hard Drive Recovery Look Like?

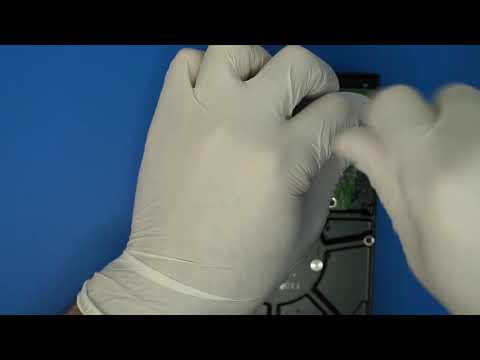

A WD recovery video should show diagnosis before extraction. This walkthrough covers a Western Digital drive that would not power on because a shorted 12V TVS diode followed an overvoltage event, then shows component removal and data recovery after the electrical fault is isolated.

This walkthrough covers a WD drive that would not power on due to a shorted 12V TVS diode from overvoltage. The video shows the full diagnosis, component removal, and data recovery.

How Can You Estimate a WD Recovery Cost?

The recovery calculator gives a starting WD cost range from symptoms, not a final quote. Western Digital hard drive data recovery pricing depends on whether the drive needs a simple copy, file system repair, PC-3000 firmware work, clean bench heads, or platter damage recovery.

Select the symptoms your WD drive is showing to get an estimated cost range. This is a starting point; we provide a firm quote after evaluating your drive for free.

What Fails Inside a Western Digital Hard Drive?

Western Digital hard drive data recovery usually depends on identifying whether the failure is firmware, mechanical, encryption-related, or media damage. PC-3000 Portable III, PC-3000 Express, DeepSpar Disk Imager, donor head stacks, and a 0.02 micron ULPA-filtered clean bench let us match the recovery method to the WD failure instead of guessing from the symptom alone.

Module 32 relocation list overfill

Module 32 tracks sectors the WD firmware wants to reallocate. When the list overfills, the drive may identify but freeze every read command. PC-3000 WD firmware access lets us clear the damaged list, patch Module 02, and image the platters before background reallocation restarts.

Module 190 SMR translator corruption

Module 190 maps logical sectors to physical shingle zones on WD SMR drives such as Red EFAX, Blue EZAZ, and Spyglass-family models. If Module 190 corrupts, the drive may report the correct size while returning unreadable user data. Recovery requires a write-locked PC-3000 workflow and translator reconstruction.

Bridge board encryption failure

WD My Book drives route sectors through a USB bridge controller, while modern My Passports use an integrated Native USB SED processor. If the bridge board, Native USB PCB, U12 ROM, or Data Encryption Key path fails, the underlying platters read as ciphertext. We preserve the original board, ROM, or MCU state before imaging.

Head-stack and read-channel mismatch

A WD head swap fails if the donor stack does not match the patient drive's DCM, preamp revision, microjog values, and PRML/EPRML read-channel calibration. We verify those values in PC-3000 before opening the drive, then image stable heads first through DeepSpar Disk Imager.

Which WD Product Lines Need Different Recovery Methods?

Western Digital product lines need different recovery methods because firmware, controller hardware, recording technology, and workload design vary across Blue, Green, Black, Red, Purple, Gold, Ultrastar, My Passport, and Elements drives. The recovery approach changes when WD uses SMR translation, bridge encryption, helium sealing, or high-RPM tuning.

Each Western Digital product line uses different firmware, controller hardware, and recording technology. These differences change the recovery approach.

How Does the PC-3000 WD Module Workflow Recover Data?

The PC-3000 WD module recovers data by reaching the drive's Service Area when the normal host interface cannot. The workflow reads ROM adaptives, backs up SA modules, repairs Module 32 or translator damage, builds a head map, and images stable heads first.

The PC-3000 WD-specific firmware module provides direct access to the drive's Service Area without relying on the normal host interface. Here is the standard diagnostic sequence for WD drives:

WD Recovery Video Library

Long-form videos showing the actual diagnosis and recovery process on Western Digital drives.

How Is the T2 Translator Rebuilt on Palmer and U-Series WD Drives?

T2 translator regeneration is one of the longest firmware workflows in modern HDD recovery. The work happens on PC-3000 Express because the SATA path is dedicated and the command timeouts can be tuned. The drive sits on the bench with a hardware write lock applied before power is applied, so background SMR reorganization cannot run. Below is the canonical sequence our technicians follow on a WD Palmer or U-series DM-SMR drive with a corrupted Module 190.

1. Hardware write lock first, then power. The drive is connected through a write-blocking adapter before the 12V and 5V rails are applied. Any background garbage collection that ran after the failure would rewrite the very shingled bands we are trying to recover. The lock stops new writes before the controller boots.
2. Force Kernel Mode on the Marvell controller. WD Marvell controllers do not expose an interactive ASCII diagnostic terminal the way Seagate F3 drives do. Kernel Mode is the diagnostic state where the controller will accept vendor-specific commands even though the on-platter firmware is unreadable. Entering it sometimes requires placing a thin dielectric film between the preamp pads on the PCB and the corresponding HDA pins so the controller boots without trying to talk to the head stack.
3. Inject a matching LDR profile into controller RAM. PC-3000 pushes a loader file (a .lod profile keyed to the patient drive's firmware family) into the Marvell controller's volatile RAM over a vendor-specific channel. The LDR simulates a successful SA read, which gives the controller a working operating system that does not depend on the corrupted platter modules.
4. Composite read of Module 190. Because the T2 translator is continuously rewritten during background garbage collection, the SA holds several metadata generations of Module 190 at different physical offsets. PC-3000 reads each generation and composes them into a single candidate map.
5. Node sort and T2 recreate. The PC-3000 T2 Editor parses the LBA nodes inside the composite Module 190, sorts them, and flags vacant, truncated, or overlapping nodes left by the interrupted garbage-collection pass. Where the tool reports a fork-direction ambiguity, the technician resolves the conflict by hand in the sector editor and reruns the build.
6. Load the rebuilt Module 190 into RAM and image. The repaired translator is loaded directly into the controller via vendor-specific command. Imaging then runs through the DeepSpar Disk Imager with sector-level retry timeouts so a single weak head cannot stall the whole pass. No write touches the patient drive at any point.
7. Fall back to Physical Block Access if the translator cannot be rebuilt. When Module 190 is unrecoverable (for example, when the SA copies of the T2 metadata are themselves corrupted), PC-3000 forces the drive into PBA mode and reads the raw shingled bands. The file system is reconstructed offline from the band image using hex-level pattern parsing of the on-disk metadata. Throughput is slow and the work is manual, but the data is recoverable when nothing else is left.

A separate edge case: drives with a working T2 translator but with the "slow responding" Module 32 overflow described earlier on this page. That repair is shorter; it does not require the composite read or the node-sort step. The two workflows are different even though both run on PC-3000 and both fall under the firmware repair tier at $600–$900. Helium-sealed Ultrastar drives that also need physical work after the firmware step move into the helium HDD pricing structure starting at $200–$5,000+.

How Does PC-3000 Extract a WD ROM Before Any Service Area Write?

ROM extraction is the first irreversible step in any WD firmware recovery that will touch the Service Area. The ROM holds the head map, the preamp bias per head, and the microjog offsets that align the controller to a specific head stack and platter set. On encrypted Native-USB families the wrapped cryptographic material is bound to the Marvell MCU and the Service Area rather than the SPI ROM, so a ROM dump is not by itself a decryption path on those drives. The dump is still the rollback artifact for every SA write that follows, and the order of operations matters: an edit performed against an unsaved ROM is unrecoverable.

Initial ROM dump

The Read ROM command in the PC-3000 WD utility extracts the SPI flash contents and writes a binary file to the profile's backup folder on the host disk. That binary is the rollback artifact for the rest of the workflow. If a downstream SA write produces an unbootable drive, the original ROM is reflashed from this file.

ROM Module editing

Opening the saved binary in the ROM Modules interface exposes Module 0A (head map), Module 47 (adaptives), and Modules 102 through 109 (shadow copies) as labeled structures the engineer can adjust. Edits live in the working copy until they are explicitly written back to the drive; no edit is made against the primary backup file.

Verify pass

Before any edit, the SPI is read a second time through the PCB test points and the two binaries are compared byte-for-byte. A mismatch indicates an unstable SPI rail or a marginal U12 chip, in which case we move to direct SPI programmer extraction off the board rather than trust the in-circuit read. The verified binary is then copied to a second volume so the rollback exists on more than one medium.

Why ROM Adaptives Travel With the Head Stack

The ROM is not a property of the PCB silicon. It is a written record of the factory calibration pass that aligned one specific head stack against one specific platter set. The head map bitmask describes which of those heads are live; the preamp bias per head describes how hard each head writes; the microjog offsets describe the read-to-write element gap on each slider in that stack. All three values follow the HDA, not the controller board.

The practical rule on the bench: when a dead PCB is replaced with a donor, the patient ROM moves to the donor PCB. When a head stack is replaced from a donor HDA, the donor's ROM adaptives go with the heads onto the patient PCB only if the donor HSA is to be used wholesale. In normal recovery practice the patient ROM stays in place and the donor heads are calibrated against the patient's stored bias and microjog values through Module 47 adaptive transfer. Mixing a donor ROM with patient heads produces clicking, shifted reads, or read channel collapse even when both PCBs are silkscreen-identical.

Head Map (HMAP) and DCM Are Not the Same Check

A DCM match confirms that the donor head-stack supplier, preamp vendor, and HSA family code align with the patient. A DCM match does not confirm that the donor and patient share an active head configuration. WD ships drives within the same DCM family with selectively disabled heads, depopulated surfaces, or different active-head bitmasks as a yield-management practice. The Head Map in Module 0A, with its shadow in Module 102, is what records the active configuration for an individual drive.

Our donor verification reads Module 0A from the patient ROM before the donor is opened. Once the donor is in hand, Module 0A is read from the donor ROM as well, and the two bitmasks are compared. A donor that matches the DCM but ships with a head map that disables surfaces the patient relies on cannot drive the patient platters correctly even after a successful mechanical swap, because the controller will route I/O to heads whose tracks do not exist in the patient's servo geometry. For a broader framing of how firmware modules drive every step of the boot path, see our hard drive firmware reference and the brand-wide failure framing in our hard drive data recovery overview.

Why a CMR Slow-Responding Fix Destroys a WD SMR Drive

The WD slow-responding workflow described earlier on this page is a Conventional Magnetic Recording (CMR) procedure. It applies to older WD Blue, Black, enterprise, and pre-SMR Red drives whose growth list (Module 32) has overflowed. On a Drive-Managed Shingled Magnetic Recording (DM-SMR) family, running the same macro can convert a recoverable drive into a wall of zeroes. Our PC-3000 workflow identifies the controller family from the ROM before any Service Area write, and the slow-responding macro is never executed on a Palmer, Spyglass, or Charger 2.5-inch SMR chassis or on an EFAX-suffix 3.5-inch WD Red SMR drive.

On those SMR families, the relocation list (Module 32) is linked to the CMR media cache zones and to the T2 translator generation pointed at by Module 189. Clearing Module 32 in isolation breaks the linkage to Module 190 and orphans the cached writes still resident in the CMR media-cache band. After a blind clear the firmware identifies the drive normally, reports its full capacity, and returns zeros for every read because it can no longer resolve cached writes to shingled bands. That state is permanent.

Module 189 Is the Index, Module 190 Is the Body

Module 190 holds the T2 translator body that maps host LBAs to overlapping shingled bands and CMR media-cache zones. Module 189 holds the T2 headers that index the surviving metadata generations inside Module 190 and tell the controller which generation is current. The two modules are read together. A common misread of WD SMR recovery is to treat Module 190 as the only file that matters; in practice Module 189 is what makes a particular generation of Module 190 addressable.

Module 190 does not carry the small checksum structure used by the rest of the Service Area, and the module is large enough that the PC-3000 utility issues checksum warnings on a routine read. Those warnings are expected and are not by themselves a sign that the module is unrecoverable. The decision of whether a translator can be rebuilt comes from the generation rollback step, not from the checksum warning at read time.

Composite Reading for Modules 189 and 190

We do not read Modules 189 and 190 as part of a standard SA track sweep on an SMR drive. Their size and structure make the standard sweep prone to timeouts that leave the SA half-saved. PC-3000 has a composite-read mode for these modules, in which the utility addresses the module by its composite areas and saves them as separate files. The composite read is paired with the Lock User Area writing flag described in the T2 translator regeneration section above, so background garbage collection cannot rewrite the bands during the multi-pass read.

DCM Is Necessary, Microjog Delta Is the Gate

DCM matching, site-code matching, and a tight manufacture-date window are necessary but not sufficient for a donor to clear the gate on a WD head swap. Before either drive is opened we read the patient ROM and the candidate donor ROM and compare per-head microjog offsets. As a general guideline a microjog delta below roughly 200 to 300 points across the candidate heads is what we treat as inside acceptable range. A delta beyond that range means the donor heads will sit far enough off the patient's servo geometry that the read channel either fails to lock or returns data from an adjacent track. A candidate donor that fails the microjog delta check is rejected and we search for another DCM-matched, site-code-matched, date-matched candidate. This is also why DCM-only matching, the criterion most often quoted online, is not the criterion we open a drive on.

Why Generic Imagers Cannot Trigger Any of This

None of the steps above are reachable from a generic imager or from consumer recovery software running over USB or SATA. Module 189, Module 190, the Lock User Area writing flag, the composite-read mode, and the ROM microjog read are all vendor-specific operations against the WD controller's negative cylinders. Generic software speaks only ATA, sees only the logical user area, and on an SMR drive whose translator is gone receives the same zeroes the host would receive. The recovery happens in the controller before any LBA is issued, which is why every step on this page references PC-3000 against the original PCB or a properly matched donor PCB, not against the OS view of the drive. The clean-bench, firmware, and full mechanical hard drive data recovery stack lives at the Austin lab and is the same stack used across every brand we handle.

How Does PC-3000 Handle WD Firmware Recovery Beyond Translator Rebuild?

Translator rebuild is one branch of a WD firmware recovery, not the whole tree. The defect-list architecture, the SMR family identification step, the controller mode used when the loader is unreadable, the SATA bypass on Native USB SED drives, the separate HGST CCB architecture inside post-2012 WD, and the head-map precedence rule each have their own mechanism inside the PC-3000 WD workflow.

The sections below cover the parts of that workflow that sit alongside Module 189 and Module 190 work, with the specific module identifiers, PCB revisions, and test-pad references our technicians work against at the Austin lab.

P-list in Module 33 vs G-list in Module 32

The WD primary defect list (P-list) sits in Module 33 and is written once at the factory. It is static and never grows during the drive's service life. The growth defect list (G-list) sits in Module 32 and is the runtime list the firmware extends every time it reallocates a sector after a failed read retry. The slow-responding state is a Module 32 overfill: the runtime list outgrows its allocation and the firmware enters a retry loop. A Module 32 clear plus a Module 02 patch to suppress background reallocation fixes that case.

A different pathology survives the Module 32 clear: a P-list defect storm, where the patient platters carry far more factory defects than the controller can resolve. The Module 32 clear procedure does not touch Module 33, so the symptoms return as soon as imaging starts. PC-3000 distinguishes the two cases by observing the G-list repopulation rate after the clear. A controlled read pass that refills Module 32 within a small number of LBAs indicates a defect-laden surface rather than a runtime overflow. On a patient drive the response is at the imager layer, not the firmware layer: the factory P-list in Module 33 is left alone, because adding entries to Module 33 shifts the translator's LBA-to-PBA mapping and scrambles the user payload that the recovery exists to preserve. Instead, PC-3000 Data Extractor or the DeepSpar Disk Imager handles the damaged geometry with multi-pass reads, PHY-level timeouts, and per-head selective disabling so the image steps past unreadable bands at the hardware level. P-list editing is a manufacturing refurbishment operation, not a data recovery operation.

SMR Family Identification from ROM Before Any Service Area Write

Each WD DM-SMR family has its own zone allocation table layout, its own LDR profile, and its own RAM head map requirement at T2 rebuild time. PC-3000 loads a different microcode set for each one. The family identifier and the PCB revision are parsed out of the ROM before any vendor-specific write reaches the Service Area, because misclassification at this step writes the wrong zone allocation table into Module 189 and corrupts the structure that lets the T2 translator find shingled bands.

The families we identify before opening the SA on a WD SMR patient:

• Palmer. 2.5-inch mobile family. Frequently SED-locked behind a Native USB encryption controller.
• Spyglass. 2.5-inch USB and SATA variants. T2 rebuild needs the exact RAM head map for the running family revision.
• Charger. The family most susceptible to Module 190 corruption from unexpected power loss during background band rewriting.
• FBLite2. Native USB SMR family.

We cross-check the patient's PCB revision against the current PC-3000 WD family database before any Service Area write, rather than relying on memorized revision numbers, because WD reassigns and revises board numbers across the product line. ROM family identification is the gate. Loading the wrong LDR profile against any of these families can write the wrong zone allocation table into Module 189 and permanently corrupt the metadata that lets the T2 translator resolve a logical sector to a shingled band.

Marvell Kernel Mode When Module 11 Is Unreadable

Kernel Mode is a Marvell-specific controller state in which the MCU skips its normal Service Area load and accepts microcode uploaded directly from the host into controller SRAM through the PC-3000 Load LDR command. It is not the same thing as Samsung Safe Mode, which uses the Samsung BURN resource loader on a different controller family. The two are sometimes referenced interchangeably online; they are not the same path and they are not driven by the same commands.

Kernel Mode is the route into a WD drive whose Module 11 LDR is unreadable. The drive will not negotiate ATA, will not return a model or serial, and will not expose the Service Area. PC-3000 forces the Marvell controller into Kernel Mode through vendor-specific commands and writes a known-good LDR image into SRAM. Once the controller has a working loader in RAM the Service Area becomes reachable for the rest of the diagnosis.

Why Generic Recovery Software Cannot Rebuild a WD T2 Translator

R-Studio, DMDE, ddrescue, PhotoRec, and TestDisk all speak ATA READ SECTOR against the logical user area the firmware chooses to expose. None of them issue vendor-specific commands, none of them address the Service Area on negative cylinders, and none of them rebuild firmware structures. The T2 translator rebuild is a Service Area procedure that happens before the user area is worth reading.

On a WD drive with a corrupted Module 190, a read against an unmapped LBA does not return an error. The firmware treats the LBA as TRIM or unmapped and returns zeros, and every one of those tools records the zeros as a successful read. The image is a record of the broken state, not a recovery. PC-3000 reads the raw shingled bands, parses Module 189 zone parameters, reconstructs Module 190 in controller RAM through vendor-specific commands, and only then is the user area worth imaging through the rebuilt map. The hard drive firmware reference explains why the Service Area and the user area are different address spaces and why generic imagers cannot cross that boundary.

Native USB SED SATA Bypass on My Passport and Elements

Modern WD My Passport and Elements drives integrate the AES-256 engine into the MCU on the main PCB. There is no separate USB bridge board to slot a donor adapter under, and a generic USB-to-SATA adapter cannot pass the vendor-specific commands PC-3000 needs to reach the firmware modules that hold the encrypted Data Encryption Key. The recovery path is a SATA bypass that brings the drive onto a real SATA bus.

Our technicians perform the bypass on the clean bench with the Hakko FM-2032 on an FM-203 or FX-951 base for the desolder work and the Atten 862 hot air station for board-level prep:

1. Desolder the interference capacitors that block the SATA differential pairs. WD bypass literature commonly references C13, C18, C31, and C37 on Native USB boards.
2. Micro-solder leads to the ATA test pads: E71 for SATA TX+, E72 for SATA TX-, E73 for SATA RX-, and E75 for SATA RX+.
3. Inject 5 V DC to power the controller through the bypass harness instead of through the USB front-end.
4. Connect the harness to the PC-3000 SATA adapter so vendor-specific commands can reach the firmware.

With the controller on a real SATA bus, PC-3000 pulls the encrypted DEK from the hidden firmware modules, unwraps it with the factory KEK, and decrypts on the fly during Data Extractor imaging. The original PCB is preserved; the bypass is a probe point set, not a board swap.

HGST ARM CCB Architecture Inside Post-2012 WD

After the 2012 acquisition WD kept the HGST ARM Command Code Based architecture for enterprise helium and Ultrastar drives instead of porting them to the WD Marvell ROYL stack. The CCB architecture uses a different module identifier map, a different background process control path, and a different translator recalculation flow. There is no direct Module 32 G-list equivalent on a CCB drive.

The vendor-specific command sets are not interchangeable. A Marvell ROYL VSC sent to a CCB drive does not return a useful error; it can push the controller into a state that is no longer recoverable through firmware. The correct workflow is the ACELAB HGST CCB hardware adapter paired with the dedicated PC-3000 Hitachi ARM CCB utility tab, not the WD Marvell tab. Our technicians select the architecture from the ROM family identifier before any Service Area interaction, so a Helium or Ultrastar patient is never treated as a Marvell drive by mistake. Mechanical work on these drives, when it is needed, runs on the 0.02 micron ULPA-filtered clean bench with the helium refill and reseal performed in-house.

Module 0A HMAP vs Module 102 Shadow: Which One Wins

Module 0A holds the head map bitmask in the ROM. Module 102 holds an identical shadow copy on the platters. When the printed DCM label disagrees with the internal HMAP, the HMAP is the truth. The printed sticker is a manufacturing record that can lag behind selective head disables, depopulations, or factory reworks that updated the bitmask but never updated the label.

When the ROM chip is dead and Module 0A is unreadable, PC-3000 forces the controller into Kernel Mode, extracts the surviving Module 102 from the platters, and rebuilds the active-surface bitmask inside the Building SA from ROM data utility. Donor matching is then performed against the rebuilt HMAP, not the printed sticker. The distinction matters because a DCM-matched donor whose active-head bitmask does not align with the rebuilt HMAP will route the read channel to surfaces that do not carry the patient's tracks, and the drive will click on the bench despite a clean DCM check.
